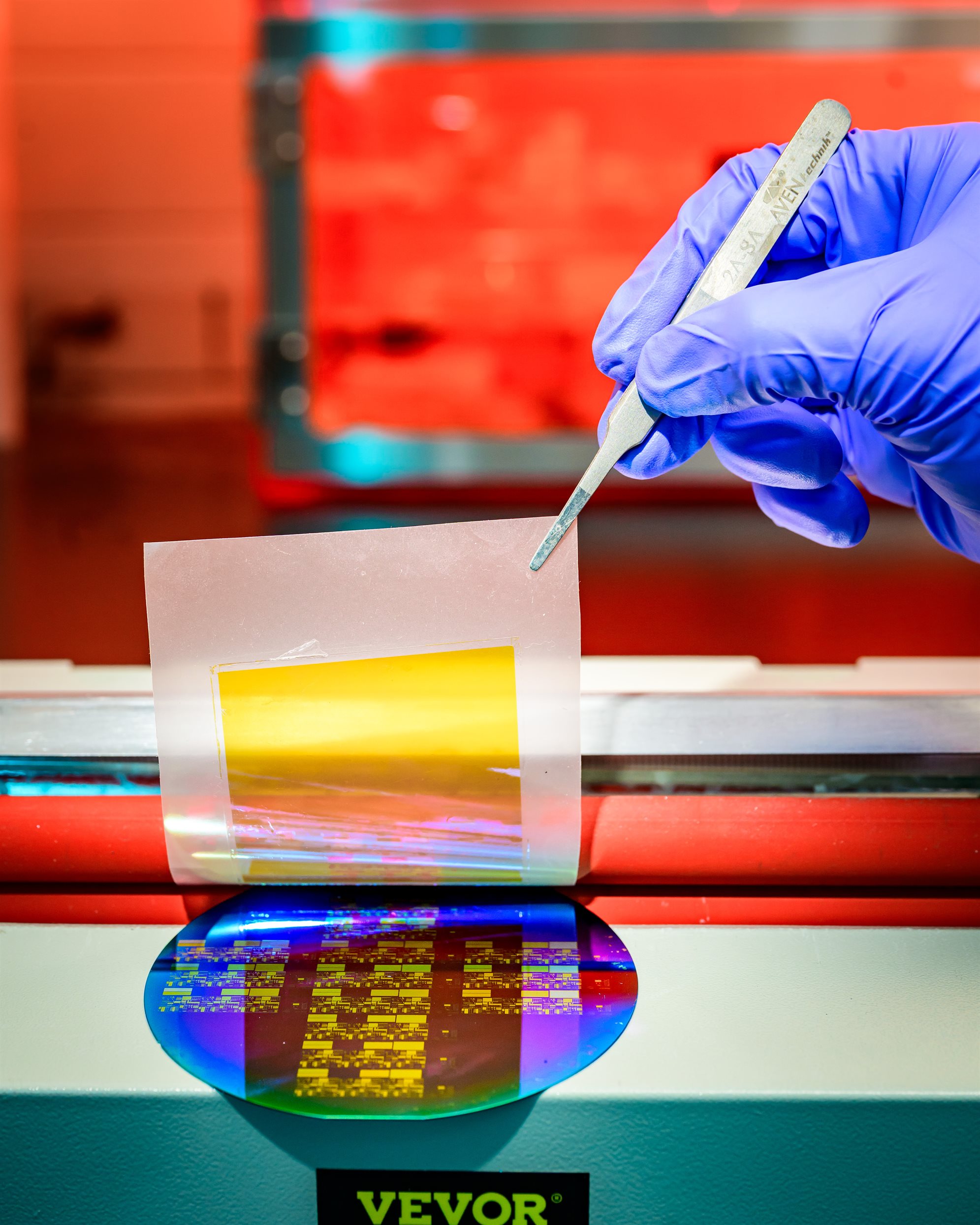

In a development that is sending ripples across the technology sector, researchers at the University of Illinois Grainger College of Engineering have unveiled a new method for creating a true 3d silicon chip. This isn’t just another incremental step; the team, led by professor Qing Cao, claims their low-temperature manufacturing process using ultra-thin silicon membranes finally overcomes the thermal budget constraints that have long plagued monolithic 3D integration. The promise is nothing short of extending Moore’s Law by building processing power vertically, like skyscrapers, instead of continuing the endless suburban sprawl of 2D chip design.
Table of Contents
The central assertion is that this technique enables the stacking of multiple layers of high-quality, single-crystalline silicon, the bedrock of modern electronics, with reported device yields of 98–100% in a lab setting. This news lands at a critical juncture, as the industry grapples with the physical limits of miniaturization. But while the headlines herald a new era, seasoned analysts are asking the tough questions: can this academic success translate to the brutal, high-volume world of commercial fabrication?
The Crowded Arena of 3D Chip Integration
To grasp the significance, one must recognize that the concept of a the technology is not entirely new. The industry has been pursuing vertical integration for years, primarily through “chiplet” or “2.5D” approaches. Leading players like Intel with its Foveros technology and TSMC with its System on Integrated Chips (SoIC) platform have already commercialized products that stack pre-fabricated dies. These methods connect separate, smaller chiplets with micro-bumps or through-silicon vias (TSVs), which, while effective, are fundamentally different from the “monolithic” ideal.
Current 2.5D/3D technology is akin to building a multi-story building by stacking prefabricated modules. In contrast, the monolithic this innovation that the Illinois team is proposing is like constructing the entire skyscraper floor by floor, with wiring running natively between levels. This monolithic integration promises far denser and more efficient connections, potentially reducing latency and power consumption. However, the primary obstacle has always been heat. Fabricating a new layer of transistors typically requires temperatures so high they would destroy the circuits on the layer below. The Illinois breakthrough purports to solve this with a low-temperature process, a claim that, if scalable, could indeed be revolutionary.
You might also like: Nvidia robotics Exposes a Critical Risk in Modern Robotics
The established players in this space, TSMC and Intel, are not standing still. TSMC’s 3DFabric, which includes SoIC, CoWoS, and InFO, offers a comprehensive suite of advanced packaging solutions that allow customers to mix and match chiplets to optimize for performance and cost. Similarly, Intel’s Foveros Direct is moving toward solderless copper-to-copper hybrid bonding, pushing for sub-10 micron interconnect pitches to dramatically increase density. Any new the system technology must compete with these deeply entrenched and continuously evolving ecosystems.
A Critical Examination of the Breakthrough
Although the academic achievement is undeniable, transitioning from lab-scale success to mass production presents immense challenges. The claim of a low-temperature process that preserves the integrity of underlying layers is the linchpin of this entire breakthrough. Manufacturing veterans will point out that thermal budget is just one of many obstacles.
A primary concern is yield and defectivity at scale. Achieving a 98% yield on a small number of devices in a lab is one thing; maintaining that across millions of chips on 300mm wafers is another challenge entirely. Monolithic 3D integration multiplies the potential for defects, as a single flaw on any layer could render the entire stack useless. This complexity dramatically increases fabrication costs and requires unprecedented levels of process control.
Moreover, challenges such as routing complexity and thermal hotspots are exacerbated in these designs. While a monolithic it can shorten communication paths, the sheer density of transistors stacked so closely together can create intense thermal hotspots that are difficult to cool, potentially throttling performance and affecting reliability. The research acknowledges strong inter-tier thermal coupling, an issue that requires sophisticated thermal-aware design methodologies to mitigate. The industry will be watching closely for follow-up data on long-term reliability and performance under real-world thermal loads.
The Bottleneck Facing the Next-Gen 3d silicon chip
Ultimately, the commercial viability of any new the platform technology will hinge on economics. The semiconductor industry is driven by the cost-per-transistor. While monolithic 3D stacking promises more transistors in a smaller footprint, the complexity of the manufacturing process could make it prohibitively expensive. Economic models show that high costs and fabrication complexity are primary factors restraining the growth of the monolithic 3D IC market.
This economic reality is why major players are heavily invested in chiplet architectures. By using different process nodes for different chiplets (e.g., a cutting-edge node for CPU cores and a cheaper, older node for I/O), they can optimize costs in a way that a monolithic the technology might not allow. The Illinois approach would need to demonstrate a clear and substantial performance-per-dollar advantage to convince foundries to re-tool their multi-billion dollar fabrication plants.
Related article: Ai hardware: A Critical Warning for Early Adopters
In addition to cost, the broader ecosystem presents hurdles. A shift to monolithic 3D design requires a complete overhaul of Electronic Design Automation (EDA) tools and established design workflows. Foundries, EDA vendors, and chip designers would need to collaborate closely to develop new standards and methodologies. The University of Illinois team notes its work was supported by industry partners including IBM, Intel, and TSMC, which is a positive sign for future technology transfer, but the road from partnership to mass adoption is long.
The Bottom Line on 3d silicon chip
To sum up, the Illinois breakthrough represents a crucial scientific advance in the quest for a monolithic this innovation. It directly addresses the critical thermal budget problem that has long been a primary blocker for monolithic 3D integration. However, it is not a silver bullet. The leap from a lab-proven concept to a commercially viable, mass-produced product is immense, with substantial hurdles in yield, cost, thermal management, and ecosystem development still ahead. This is less of a finished revolution and more of a critical battle won in a long and arduous war to redefine the future of computing.
Critical Signals to Watch:
* Watch for: Any announcements of a pilot production line or technology transfer to a major foundry like TSMC or Intel.
* Monitor: Publication of independent data on large-scale wafer yield and defect density for this process.
* Monitor: Competing low-temperature monolithic process announcements from industrial R&D labs.
* Key signal: The emergence of new EDA tools specifically designed for monolithic 3D architectural planning and thermal analysis.
* Monitor: An independent cost-per-transistor analysis comparing this new the system approach to advanced chiplet packaging like Foveros Direct and SoIC.
Currently, this is best understood as a foundational research breakthrough that could reshape the industry in the coming decade. The development of a scalable 3d silicon chip remains one of the most important frontiers in technology, and while the path is challenging, this work from Illinois has illuminated a promising way forward.
